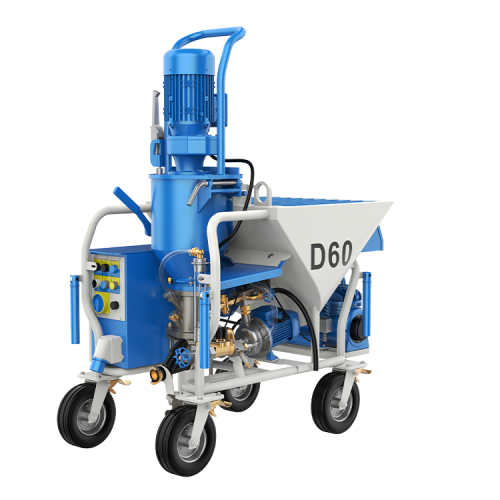

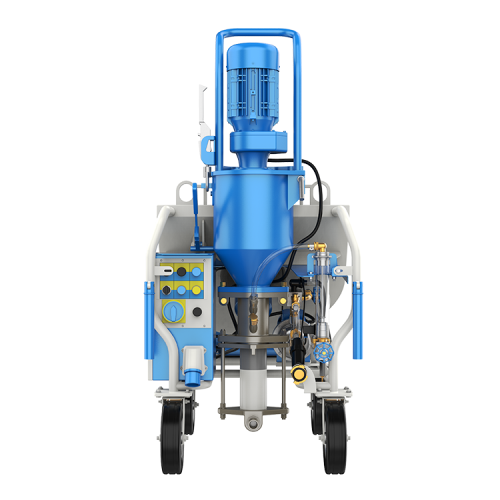

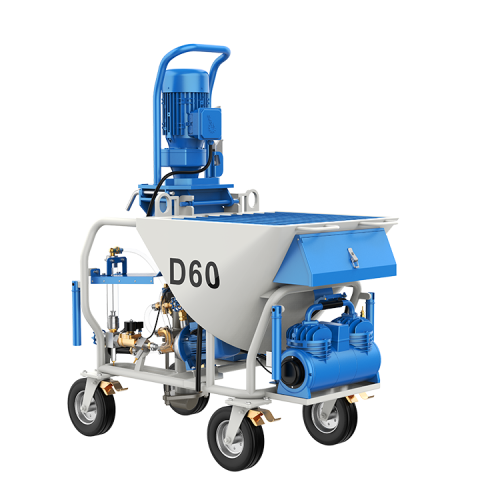

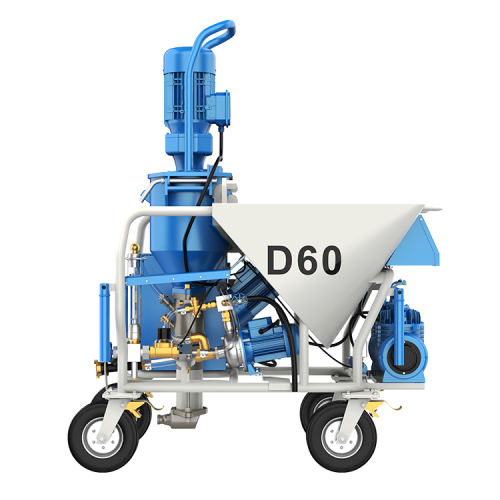

D60 Plaster Sprayer

Clog-resistant plaster spray machine for clump-free application

| Category: Fit-out and Finishing Works

Phone: +86 18857573798

E-mail: info@aytotech.com

Description

D60 gypsum spraying machine uses screw pump,automatic water,dry powder mixing technology,can automatically mix dry powder or architectural gypsum,greatly simplifies the work process,improves work efficiency,It is the best choice for all kinds of light or heavy gypsum plastering.

▶ High Quality:worm pumping, high pressure, high density, simplifies work process, a spray thickness of 3cm

▶ Safety:oil-free silent coman air compressor, convey material and air together, pneumatic switch is convenient and fast, Schneider electric protects the motor from damage, Honey Phil waterway system

▶ High Efficiency:High speed spraying, easy to complete 10-20 tons of material a day, a day to complete more than 800㎡ of plaster

▶ High Yield:15 hours ontnuously work, and automatically mix and stir dry powder or building gypsum to improve efficiency

▶ Easy to Operate:one button start, automatic water, automatic mixing, no need a number of people, quickly applied

▶ Environmental Protection:durable and efficient dust proof, pure electric cleaning, avoid the construction site secondary pollution

Specification

 Model D60 gypsum spraying machine
 Voltage 380V 50Hz
 Electric motor Nord 5500W
 Worm pump D8
 Max.aggregate size <5mm
 Theoretical output 30L/min
 Max.working pressure 50bar
 Compressor 900W
 Water pump 370W
 Hopper capacity 100L
 Vertical transport distance 40m
 Horizontal transport distance 60m
 Machine size 160*65*86cm
 Machine weight 220kg

Compatible Material

◼Cement Mortar
◼Ready-Mixed Mortar
◼Site-Mixed Mortar
◼Lime Mortar
◼Clay Mortar
◼Lightweight Gypsum
◼Heavyweight Gypsum
