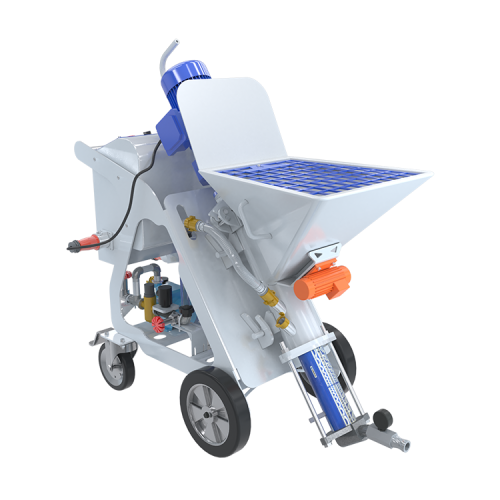

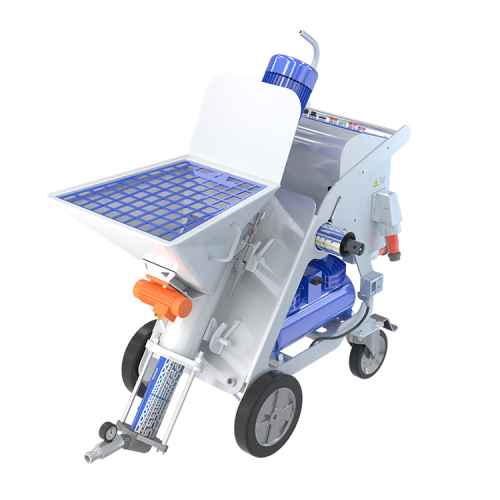

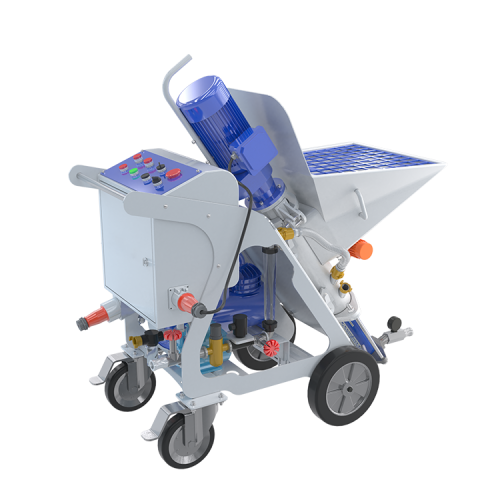

D70 Plaster Sprayer
Eco-friendly plaster sprayer for home decoration| Minimizes gypsum clumping
| Category: Fit-out and Finishing Works
Phone: +86 18857573798
E-mail: info@aytotech.com
Description

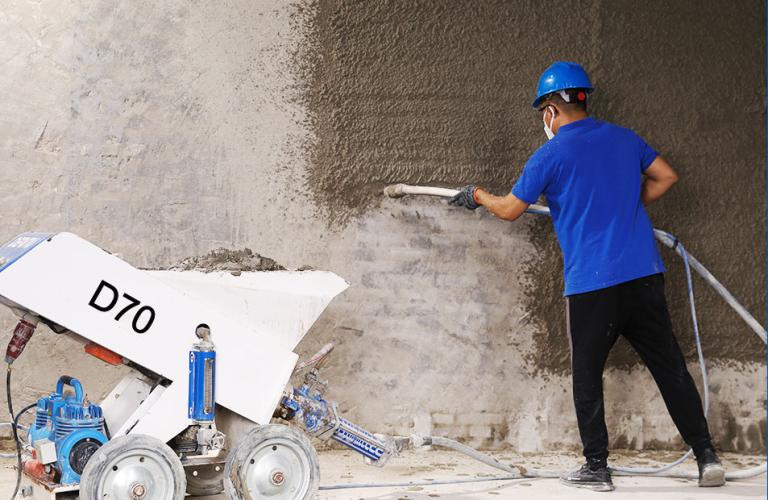

D70 wet and dry universal spraying machine using screw pump, automatic water, dry powder mixing technology, can automatically mix dry powder building gypsum, greatly simplify the work process, improve work efficiency, is the best choice for all kinds of light or heavy gypsum plasters.
▶ High Quality: worm pumping, fully stirring the dry powder, unifom but not loose, high binding power spraying on the wall to prevent cracking, de-powder, hollow drum
▶ High Efficiency: high-speed spraying, simplifying the construction process, spray 3cm thickness at a time
▶ Reduce Labor Intensity: reducing the loading height, 2 workers operate together, spray 800㎡ a day
▶ Easy to Operate: compact, simple, light, one-button start, automatic water and mixing, dry powder and wet material universal
▶ Safety: independent researsh of safety design, strengthen the key parts, no clogging
Specification
| Model | D70 wet and dry universal spraying machine | |
| Voltage | 220V | 380V |
| Electric motor | Nord 5500W | Nord 5500W |
| Worm pump | ECO20 | D8-2 |
| Max.aggregate size | <5mm | <5mm |
| Theoretical output | 20L/min | 30L/min |
| Max. working pressure | 30bar | 30bar |
| Compressor | 900W | 900W |
| Water pump | 330W | 330W |
| Hopper capacity | 38L | 38L |
| Vertical transport distance | 20m | 20m |
| Horizontal transport distance | 40m | 40m |
| Machine size | 128*63*134cm | 128*63*134cm |
| Mahine weight | 240kg | 240kg |
Compatible Material
◼Cement Mortar
◼Ready-Mixed Mortar
◼Site-Mixed Mortar
◼Lime Mortar
◼Clay Mortar
◼Lightweight Gypsum
◼Heavyweight Gypsum
