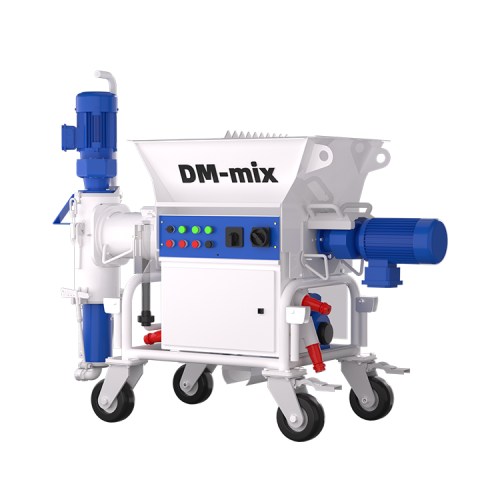

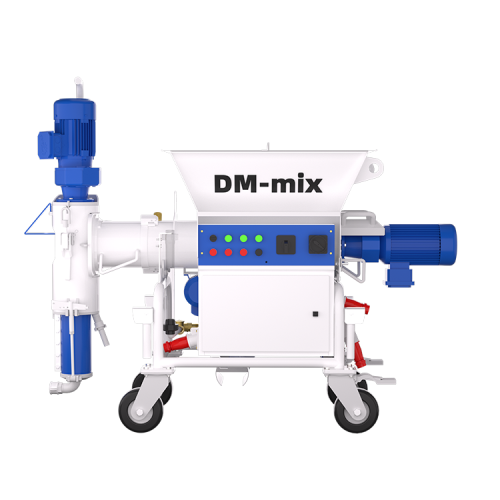

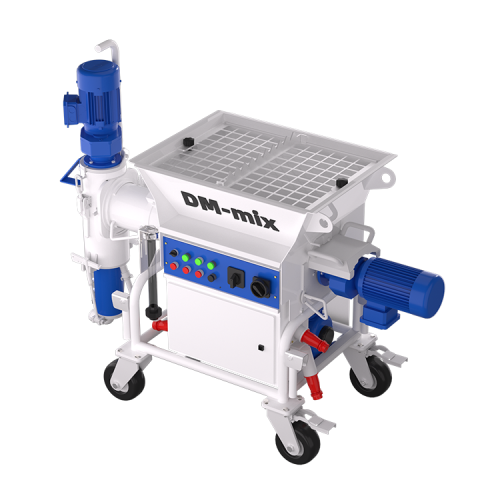

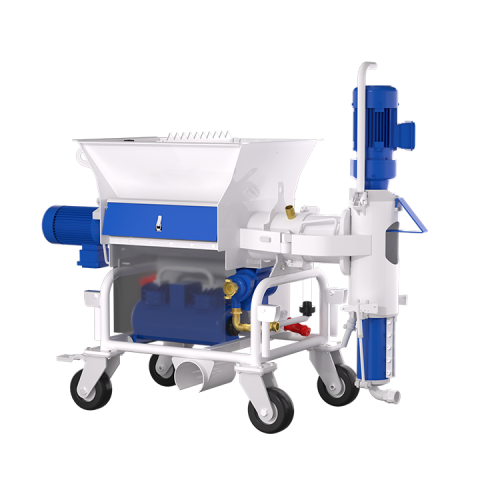

Dual-Mix Pump Sprayer
Reduces material waste by 30% with auto-metering to save coating
| Category: Fit-out and Finishing Works
Phone: +86 18857573798
E-mail: info@aytotech.com
Description
DM-Mix spraying machine has excellent mixing ability to promise even material. Stable and continous output with duel mixing system to increase efficiency. The separation of dry and wet areas enables a constant ratio of dry material to water to be achieved.
▶ High Quality: horizontal + vertical double mixing technology, automatic and continuous mixing to ensure the construction quality
▶ High Efficiency: large flow rate of 50L/min, conveying capacity 2 tons/hour, equivalent to 2 traditional spraying machines
▶ No pipe blockage: exclusively designed waterway system, automatic material stoppage if water shortage, never pipe blockage
▶ Saves time: German electrical appliances, continuous work for 12 hours, no heating or burning machine to ensure the construction period
▶ Smarter: mobile internet can be installed to remotely monitor the machine position, control machine, running time, plastering area, etc
▶ Sensor failure warning function, material shortage alarm, consumable wear monitoring, maintenance reminder
Specification
| Model | DM Double Mixing Pump Spraying machine |
| Conveying Volume | 36-60L/min |
| Conveying distance | horizontal 60m, vertical 30m |
| Conveying pressure | 30bar |
| Mixing pump | 5500W, 380V, 50Hz |
| Conveying pump | 3000W, 380V, 50Hz |
| Water pump | 750W, 60L/min, 4bar |
| Machine size | 135*64*193cm |
| Machine weight | 250kg |
Compatible Material
◼Phosphogypsum
◼Desulfurization gypsum
◼Self leveling
◼Lightweight mortar
◼Polymer mortar
◼Anti-crack mortar
◼Dry powder mortar
◼High ductility mortar
