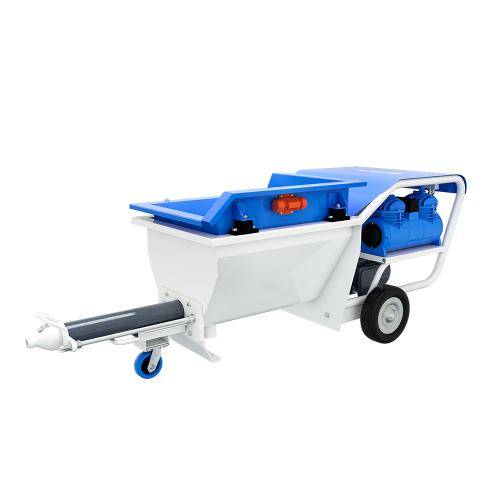

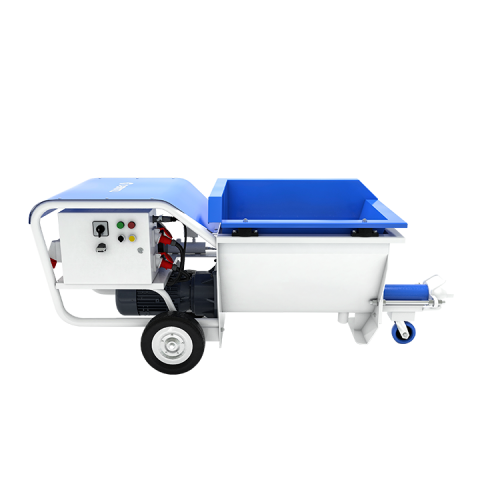

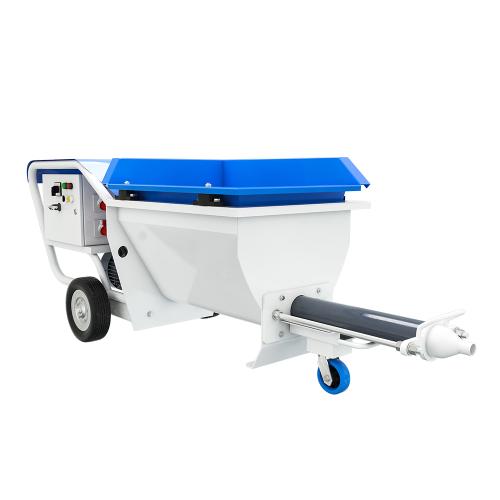

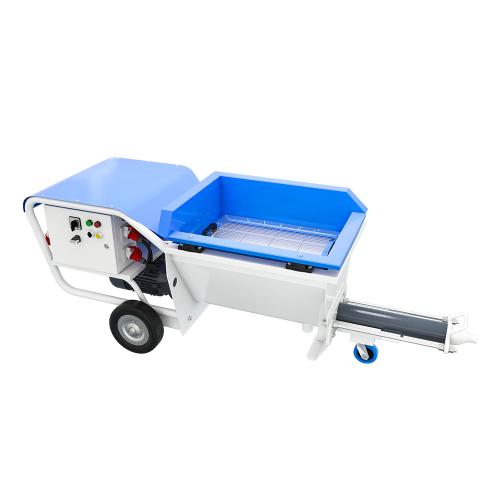

PC16/18 Mortar Sprayer

Dust-reduced mortar sprayer for hollow-free wall rendering

| Category: Fit-out and Finishing Works

Phone: +86 18857573798

E-mail: info@aytotech.com

Description

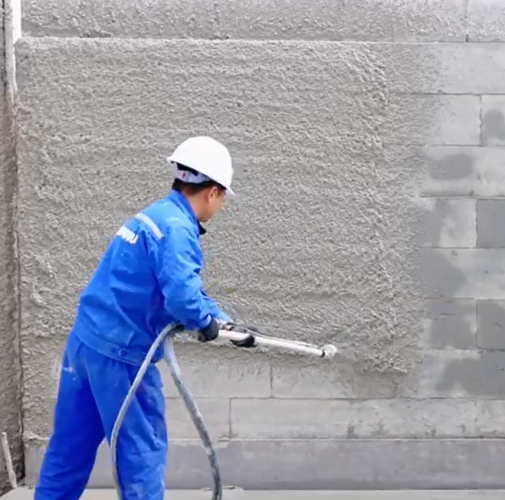

PC16/18 self-designed screw pump technology, support spraying cement mortar, gypsum, concrete and other building materials, greatly simplify the construction process, improve work efficiency.

▶ High Quality: thickened hopper design, vibration screen can filter large particles of stone, wear-resistant casters to adapt to the site, enough power, unfalling ash, high density, no hollow drum and craking

▶ High Efficiency: pure copper torque motor, large torque, large flow without clogging, spray 200㎡/h

▶ Safey: provide continuous and stable power, convey material and air together, pneumatic switch, convenient, wear-resisant, durable, high pressure resistance

▶ Intelligence: 2 people can operate, reduce the intensity of manual feeding, no scaffolding, reduce the intensity and workload of workers

Specification

 Model

PC16 spraying machine

PC18 spraying machine

 Voltage

380V 50Hz

380V 50Hz

 Electric motor

7500W

9200W

 Worm pump

DE 6.1

specially made

 Max.aggregate size

<6mm

<8mm

 Theoretical output

40L/min

40L/min

 Max.working pressure

30bar

70bar

 Compressor

900W

3500W

 Hopper capacity

100L

128L

 Transport distance

40m

40m

 Machine size

150*70*85cm

200*80*90cm

 Machine weight

210kg

288kg

Compatible Material

◼Cement Mortar
◼Finished Mortar
◼Self-mixing Mortar
◼Lime Mortar
◼Clay Motor
◼Light or Heavy Gypsum
◼Thick fire prevention
◼Vitrified microbeads insulation particles
◼Elastic coating
◼Real stone paint
◼Water in water
◼Water in sand
