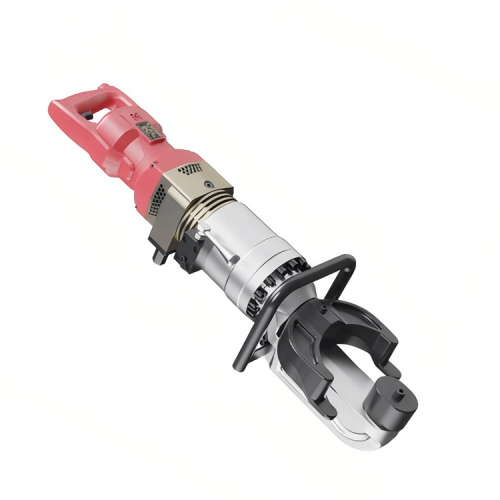

Brushless Rebar Bender
Brushless Motor Long-Lasting Durability Rebar Bender
Phone: +86 18857573798
E-mail: info@aytotech.com
Description
▶ Upgraded high-power brushless motor, strong power
▶ Bend rebar with diameter 10-28mm in 2-4 seconds
▶ By adjusting die head to realize angle adjustment
▶ High-strength special ferroalloy forging material, using 600# spherical molybdenum round steel fine processing
▶ High-performance aluminum cylinder, imported knife shaft seal ring from Japan, and original three-plunger hole design
▶ #32 or #46 hydraulic oil type
Specification
| Model | WSC16 | WSC22 | WSC25 | WSC28 |
| Voltage | 220V/50Hz | 220V/50Hz | 220V/50Hz | 220V/50Hz |
| Power | 3200W | 3200W | 3200W | 3200W |
| Cutting capacity | 10-16mm | 16-22mm | 16-25mm | 16-28mm |
| Cutting speed | 2-3 seconds | 3-4 seconds | 3-4 seconds | 3-4 seconds |
| Bend angle | 0-130° | 0-130° | 0-130° | 0-130° |
| Dimension | 630*150*155mm | 675*245*205mm | 705*255*205mm | 705*255*205mm |
| Wight | 14.8kg | 16kg | 19.2kg | 23.5kg |
