Reabr Tying Machine
Battery-Powered Rebar Tier | For Effortless Steel Reinforcement Tying
Phone: +86 18857573798
E-mail: info@aytotech.com
Description
▶ Save up to 75% total labor + materials cost VS manual tying
▶ Single hand operation, 0.7 seconds fast tying speed, it’s 3-5 times of manual tying
▶ 1-10 levels adjustable tension with advanced digital tie tension control and warning sensor detection
▶ Single brushless motor and control system for extended machine operational life
▶ Ergonomic, lightweight design, reduces impact on the body including hands, arms and back
Specification

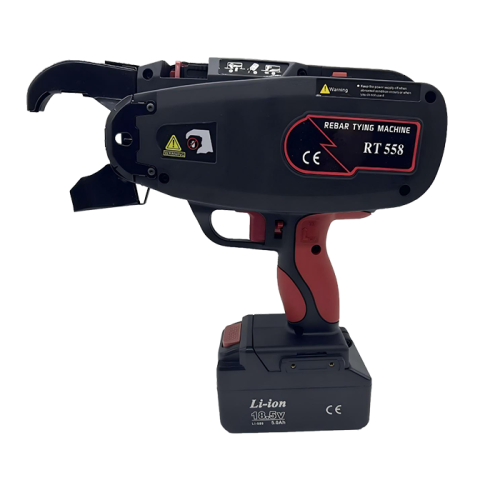

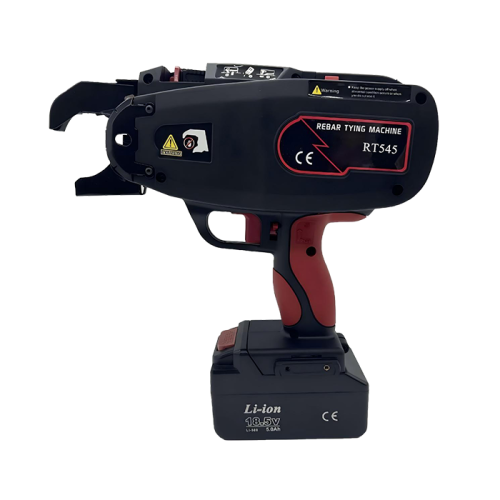

| Model | RT528 | RT545 | RT558 |
| Rebar size | 4-28mm | 4-45mm | 4-58mm |
| Tie speed | 0.7 seconds | 0.7 seconds | 0.8 seconds |
| Tie wraps | 2 or 3 wraps | 2 or 3 wraps | 3 or 4 wraps |
| Ties per coil | Approx. 180-230 ties | Approx. 150-180 ties | Approx. 120-150 ties |
| Ties per charge | 4600-5000 ties | 4400-4800 ties | 3800-4200 ties |
| Dimension | 280*105*300mm | 280*105*300mm | 280*105*300mm |
| Weight (incl.battery) | 2.65kg | 2.67kg | 2.7kg |
| Battery | 18.5V 5.0Ah | ||
| Charging time | 90min | ||
Tie Wire
Material: Q195
Length: 100m±1m (approx. 3937 in)
Diameter: 0.8mm (21 Ga)
Tensile Strength: 480MPa
Type: Galvanized wire / Black annealed wire
