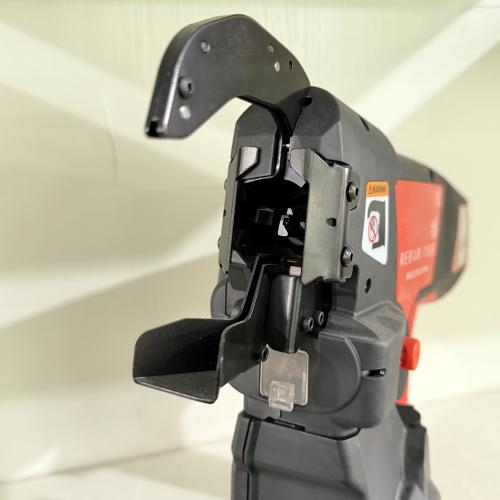

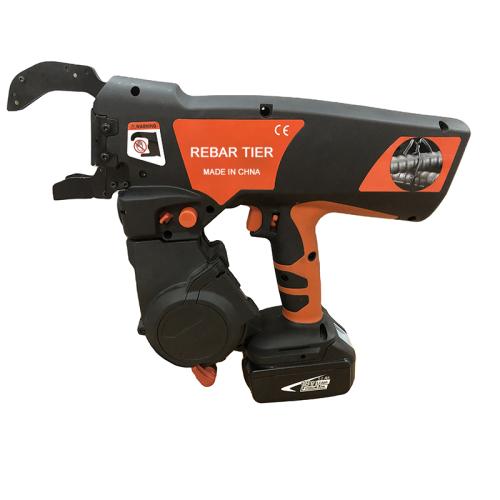

Rebar Tying Tool
Battery-Powered Rebar Binding Machine for Construction Sites
Phone: +86 18857573798
E-mail: info@aytotech.com
Description
▶ Save up to 75% total labor + materials cost VS manual tying

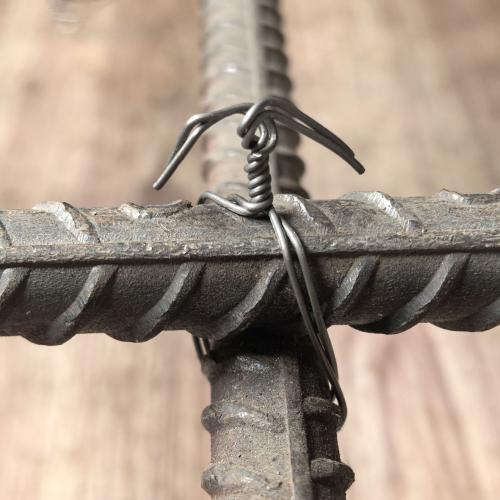

▶ Tie with dual 1.0mm wire, keep the reinforcing bars from loosening
▶ Dual brushless motor, 0.7 seconds fast tying speed, it’s 3-5 times of manual tying
▶ 1-5 levels adjustable tension with advanced digital tie tension control and warning sensor detection
▶ Ergonomic, lightweight design, reduces impact on the body including hands, arms and back
Specification
| Model | 460 | 660 |
| Max. rebar size | 10-46mm | 20-66mm |
| Tie speed | 0.7 seconds | 0.7 seconds |
| Tie wraps | 1 wrap | 1 wrap |
| Ties per coil | Approx. 260 ties | Approx. 240 ties |
| Ties per charge | Over 4300 ties | Over 4000 ties |
| Dimension | 295*120*275mm | 305*120*295mm |
| Weight (incl.battery) | 2.6kg | 2.75kg |
| Battery | 18V 5.0Ah Li-ion | 18V 5.0Ah Li-ion |
| Charging time | 70-90min | 70-90min |

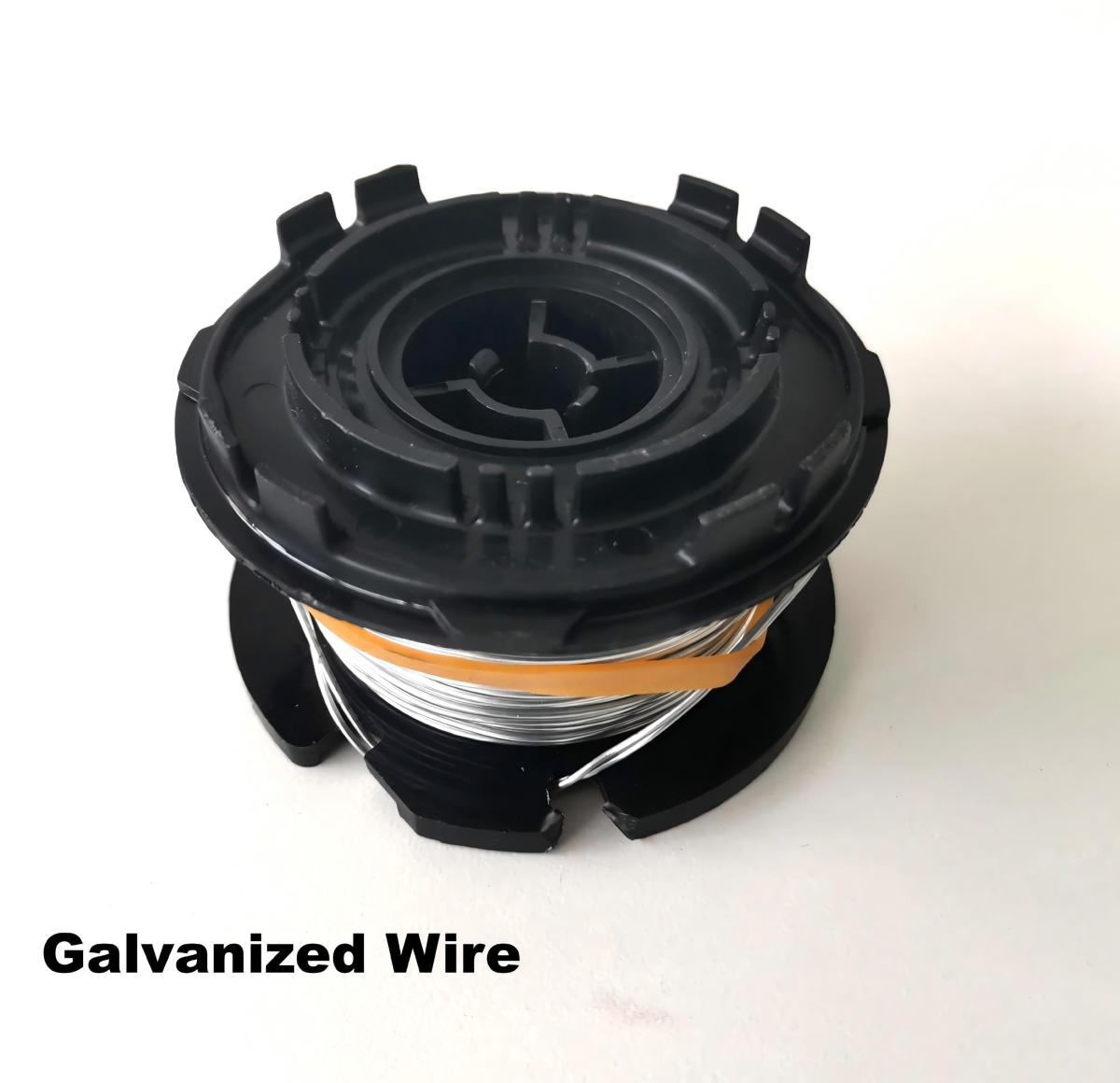

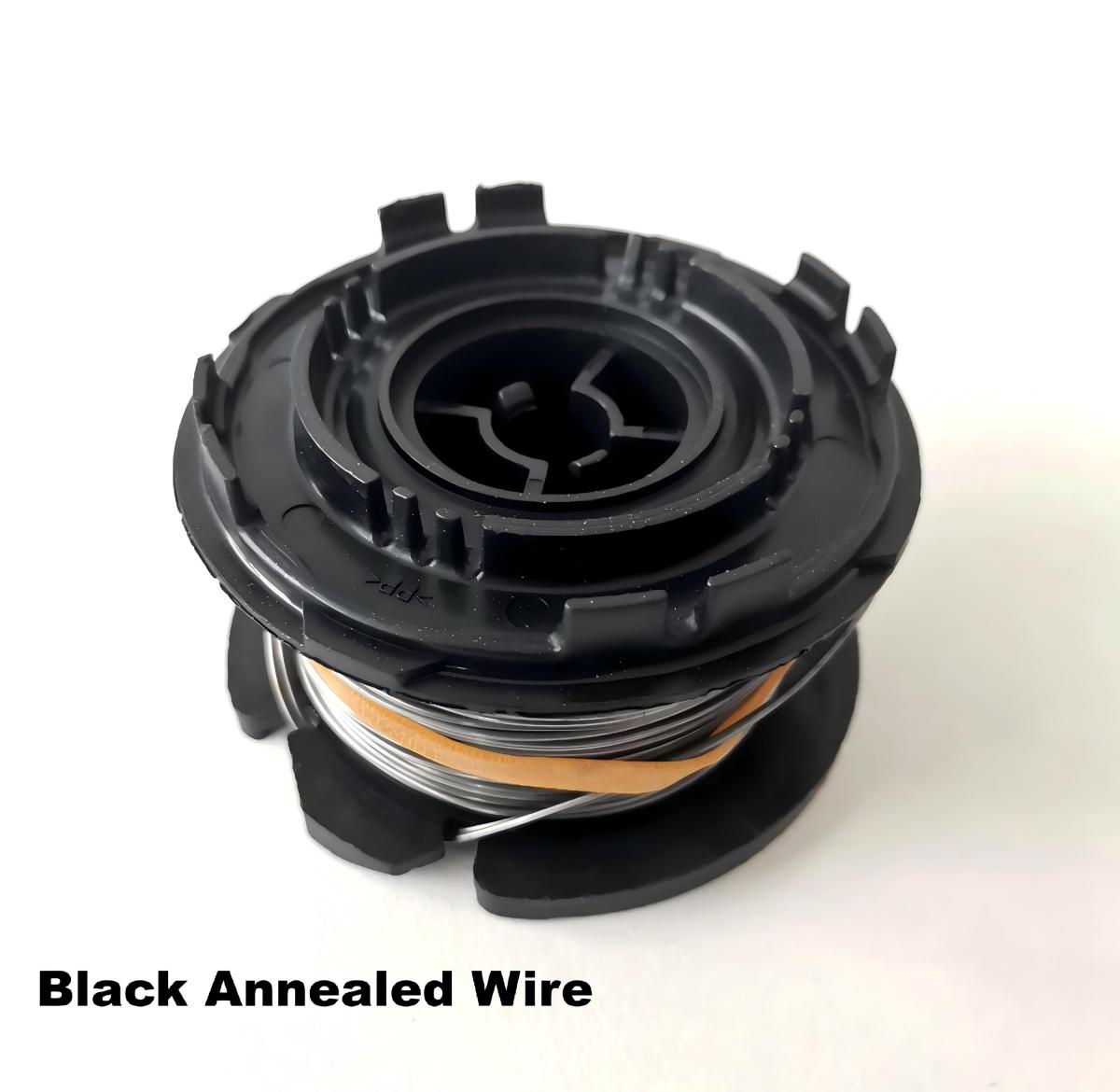

Tie Wire
Material: Q195
Length: 33±1m (approx.1299 in)
Diameter: 1.0mm*2 (20 Ga)
Tensile Strength: 480MPa
